Model: MJ-SDC-VC2
Type: Multi-Jet
Body Material: Brass
Ratio: R≤160
Brand Name | NWM |
Model | MJ-SDC-VC2 |
Type | Multi-Jet |
Body Material | Brass |
Ratio | R≤160 |
Size | Dn15/20/25 |
Customized Support | OEM, ODM |
Communication Port | NB-IOT / LoRa / LoRaWAN |
Installation Mode | Horizontal Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP16 |
Certificate | CE/MID 2014/32/EU |
Place of Origin | Ningbo, China |
Warranty | 2 years |

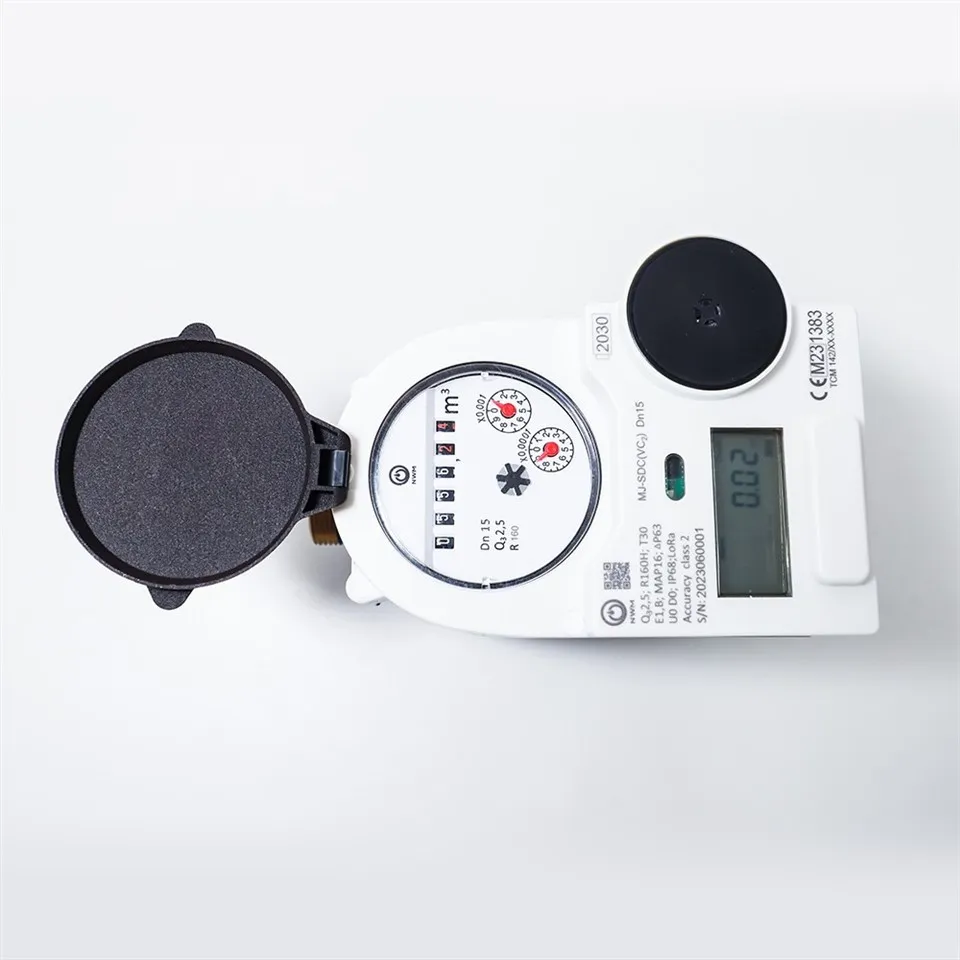

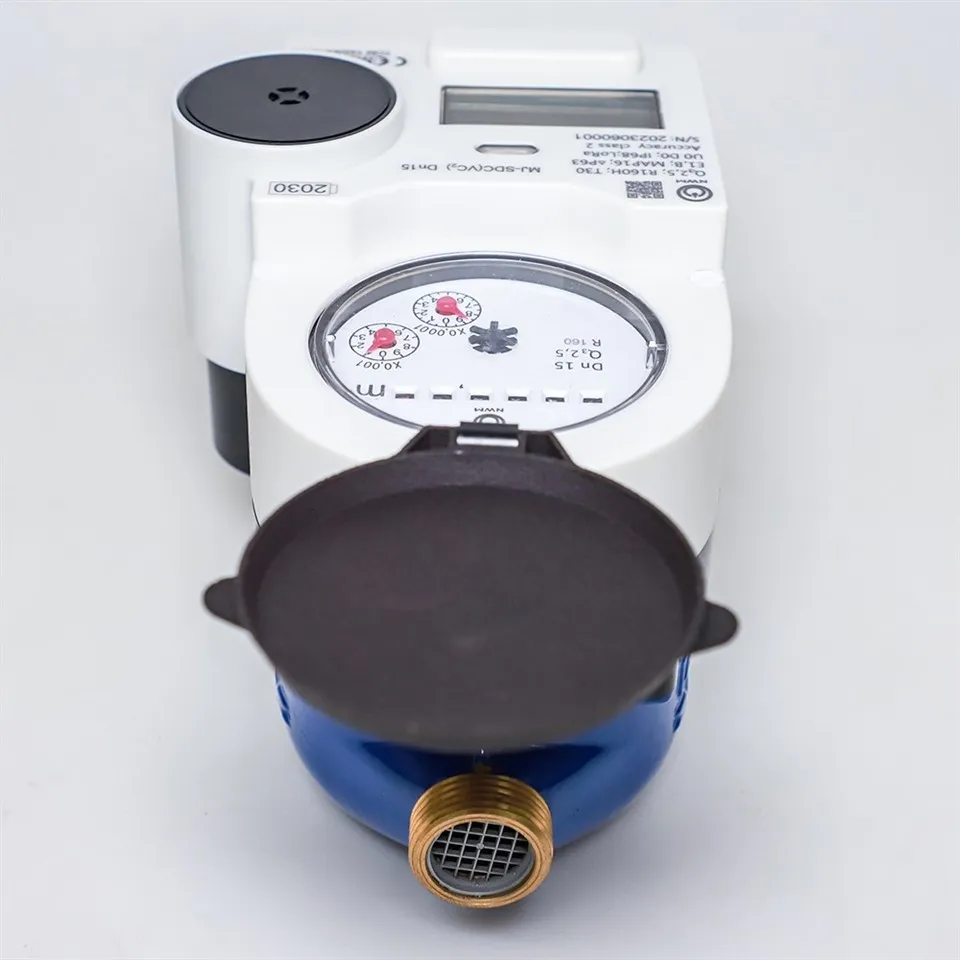

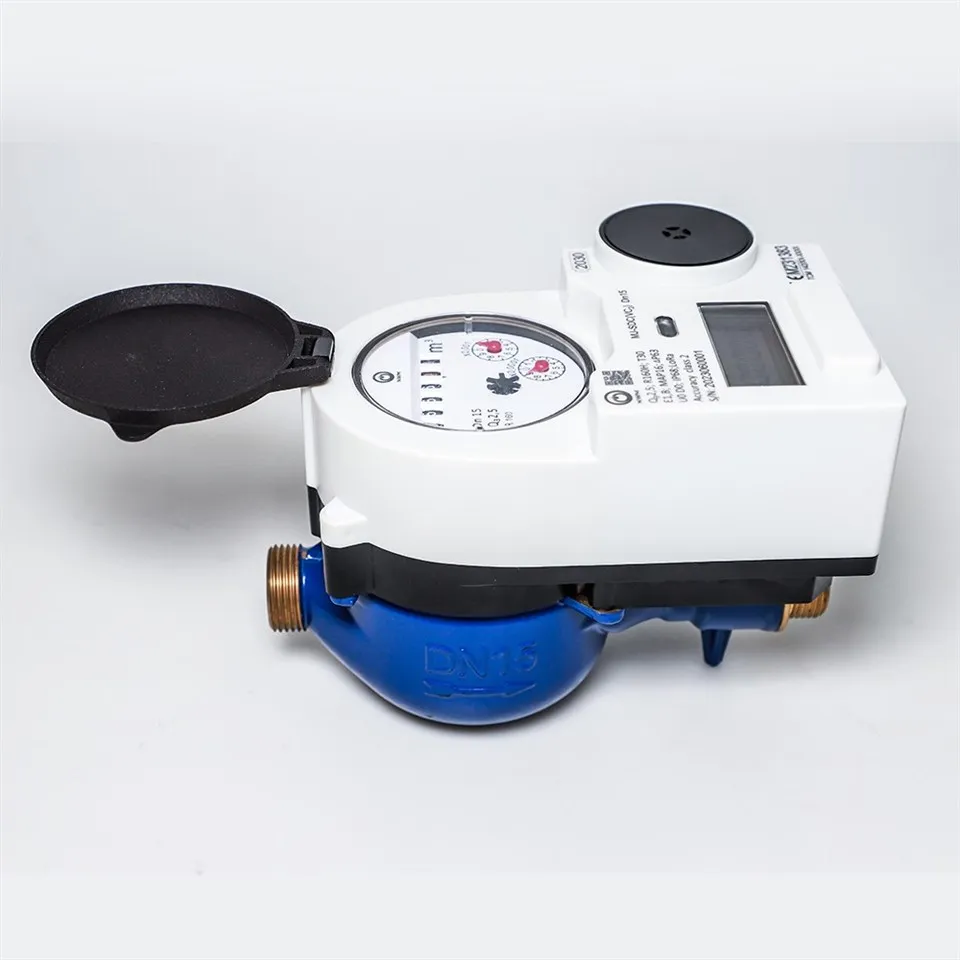

NWM MJ-SDC (VC2) STS Prepaid Water Meter is a multi-jet dry type water meter combined with integrated chip technology with optical sensors as well as communication module, realizing the function of wireless remote data reading; highlighted with STS prepaid function, with high-security privacy of users, high compatibility of remote valve controlling and high convenience of recharge modes; it complies with ISO 4064:2014 standard, it is used to measure the total amount of portable water passing through the pipeline and is a perfect choice for industrial or domestic prepayment water meter application in modern smart water management.
● Metrological Features: Multi-jet dry type STS water meter; suitable for complex water quality;High Accuracy.
● Security & Anti-tamper: Anti-magnetic; Anti-meter cover open.
● STS Features: High security; High compatibility; High convenience STS water meter.
● Human-based Functions: Friendly hours; Daylight saving time (DST); Social amount.
● AMR/AMI (LoRa): Query consumption, credit,alarms, recharge records by Mobile or PC.
● Replaceable Battery: Simple-change battery design in this prepayment water meter.

a.In the lower zone (Q1≤Q≤Q2): maximum permission error is ±5%;
b.In the upper zone (Q2≤Q≤Q4): maximum permission error is ±2%( T≤30℃), maximum permission error is ±3% (30℃<T≤50℃)
Pressure Loss
