Brand Name: NWM
Model: MJ-SDC(Z)
Type: Multi-Jet
Body Material: Brass
Brand Name | NWM |
Model | MJ-SDC(Z) |
Type | Multi-Jet |
Body Material | Brass |
Ratio | Class B/R80 |
Size | Dn15/20/25/32/40/50 |
Customized Support | OEM, ODM |
Communication Port | Reed switch (pulse output) |
Installation Mode | Horizontal Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP16 |
Certificate | CE/MID 2014/32/EU |
Place of Origin | Ningbo, China |
Warranty | 2 years |

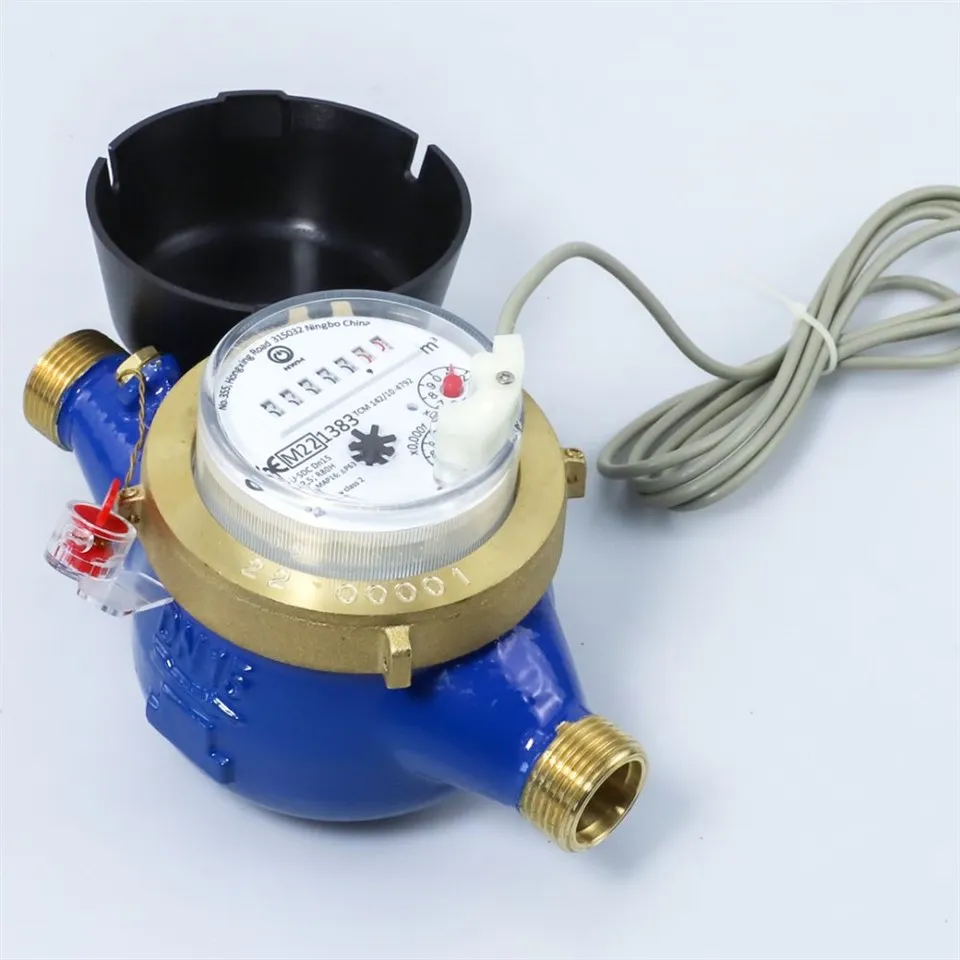

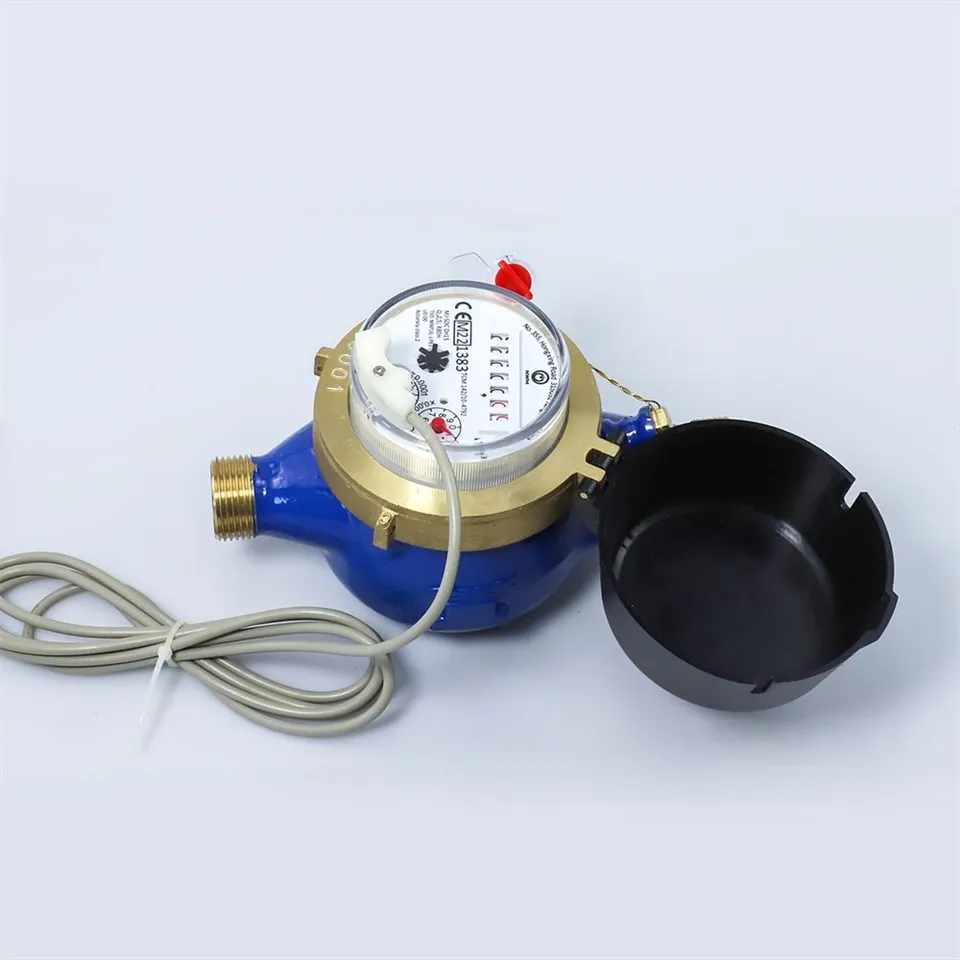

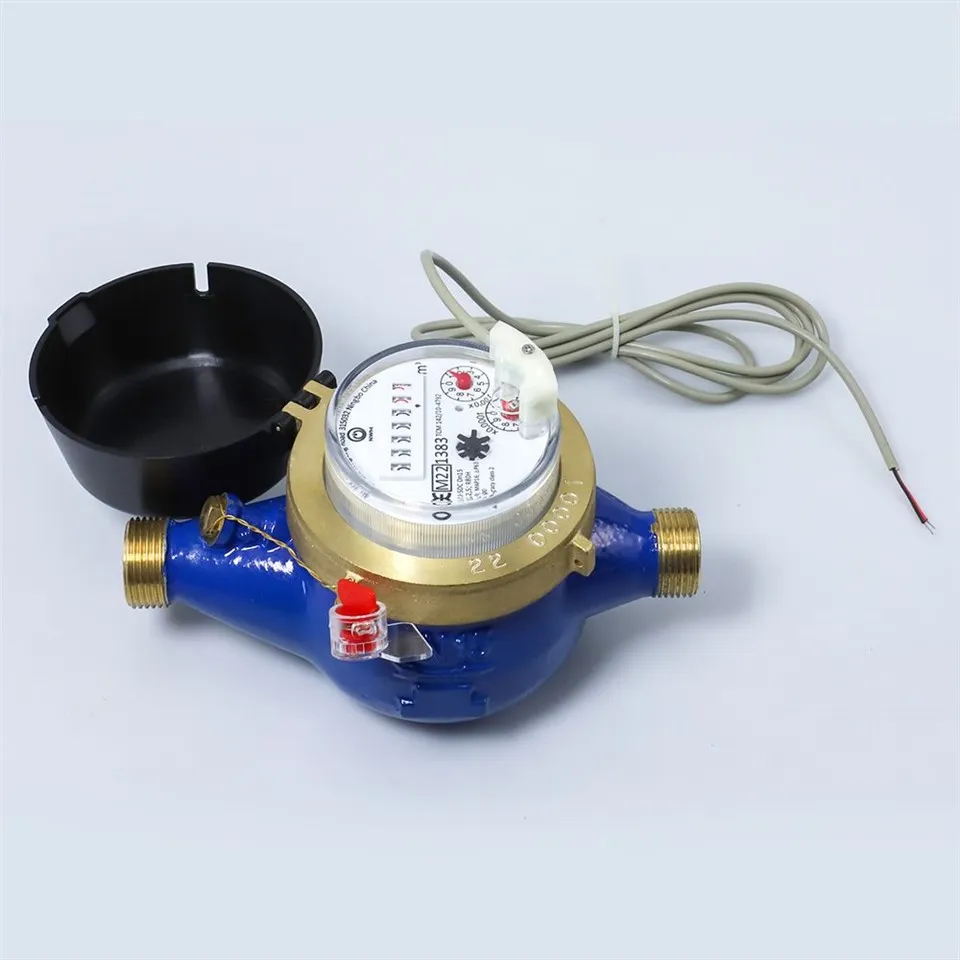

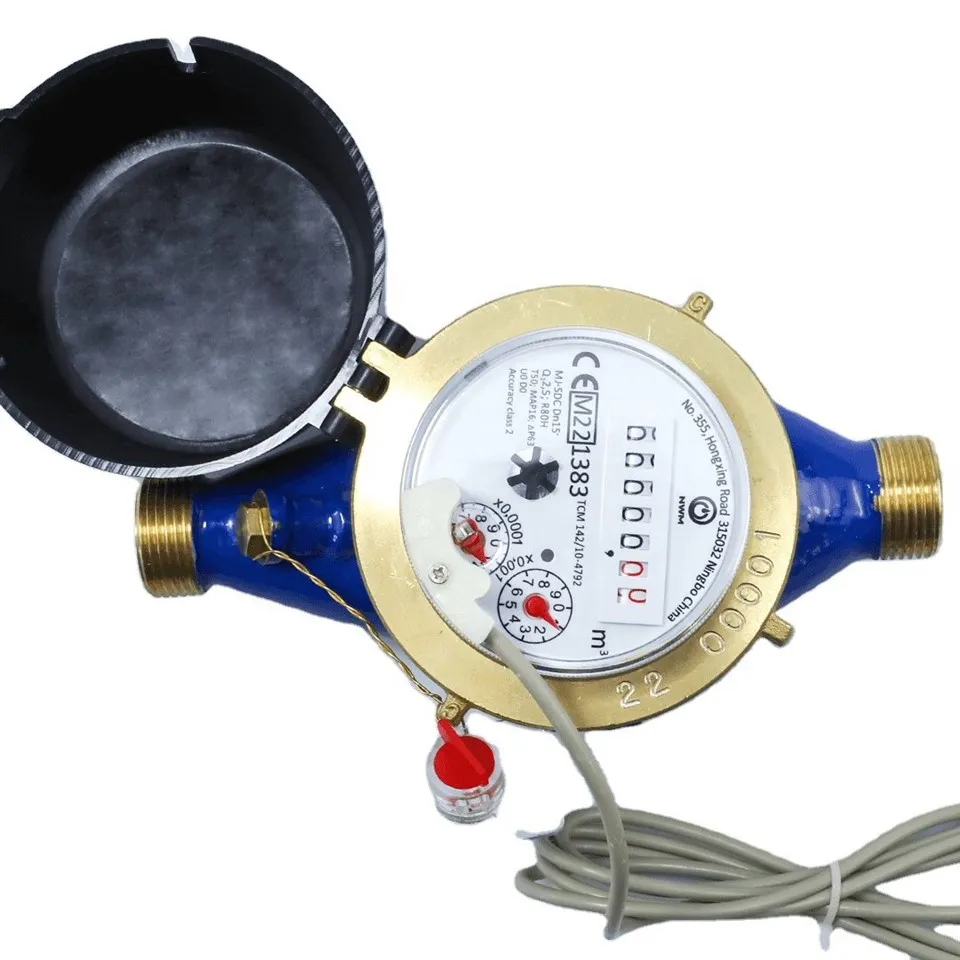

MJ-SDC(Z) is an IMPELLER (turbine) AMR water meter with magnetic transmission, dry type register has sizes from Dn15 water meter to Dn50 designed and manufactured by NWM and meets the requirements of Directive 2004/22/EC on measuring instruments;the European Standard EN14154+A1+A2: Water Meter; the International Organization of Legal Metrology OIML R-49:2006(E): Dn15 Water meters intended for the metering of cold potable water.
● Corrosion Resistance: All the materials selected by resistance to corrosion;
● High Stability: The Impeller is the only moving parts in contact with water permitting the most reliable;
● Directly Reading:The rollers are liquid-sealed ensuring clear readings under any conditions;
● Extra Inlet Filter:The filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
● Non Return valve:to avoid the reserve flow Rate AS OPTION;
● Remote transmission: Reserve remote transmission function to realize data transmission.



a.In the lower zone (Q1≤Q≤Q2): maximum permission error is ±5%;
b.In the upper zone (Q2≤Q≤Q4): maximum permission error is ±2%( T≤30℃), maximum permission error is ±3% (30℃
