Brand Name: NWM
Model: MJ-SDC(G7-C)
Type: Multi-Jet
Body Material: Brass
Brand Name | NWM |
Model | MJ-SDC(G7-C) |
Type | Multi-Jet |
Body Material | Brass |
Ratio | Class B/R100/R160 |
Size | Dn15/20/25/32/40/50 |
Customized Support | OEM, ODM |
Communication Port | Reed switch (pulse output) |
Installation Mode | Horizontal Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP16 |
Certificate | CE/MID 2014/32/EU |
Place of Origin | Ningbo, China |
Warranty | 2 years |

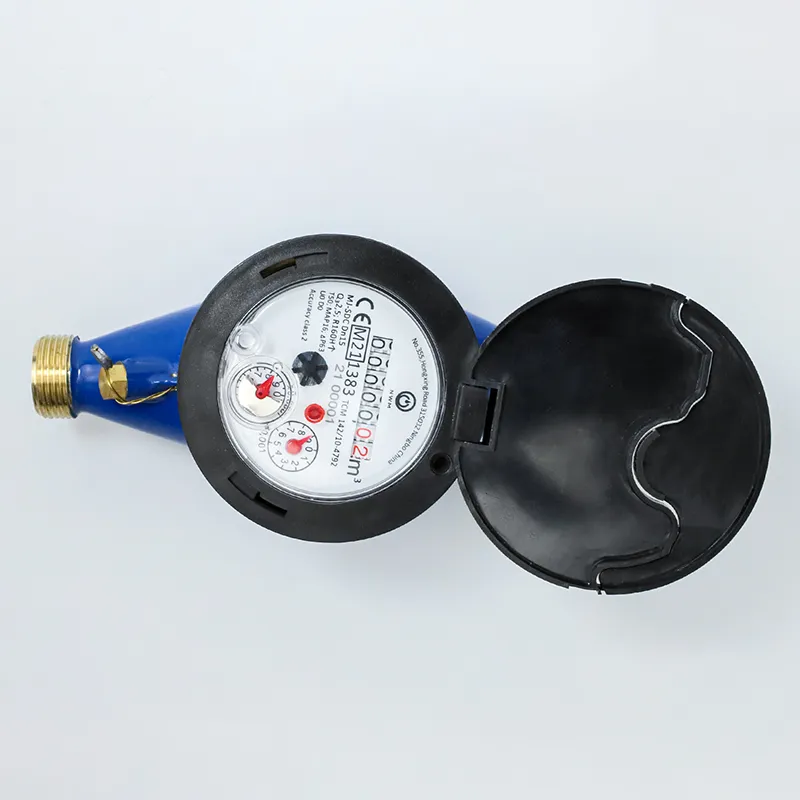

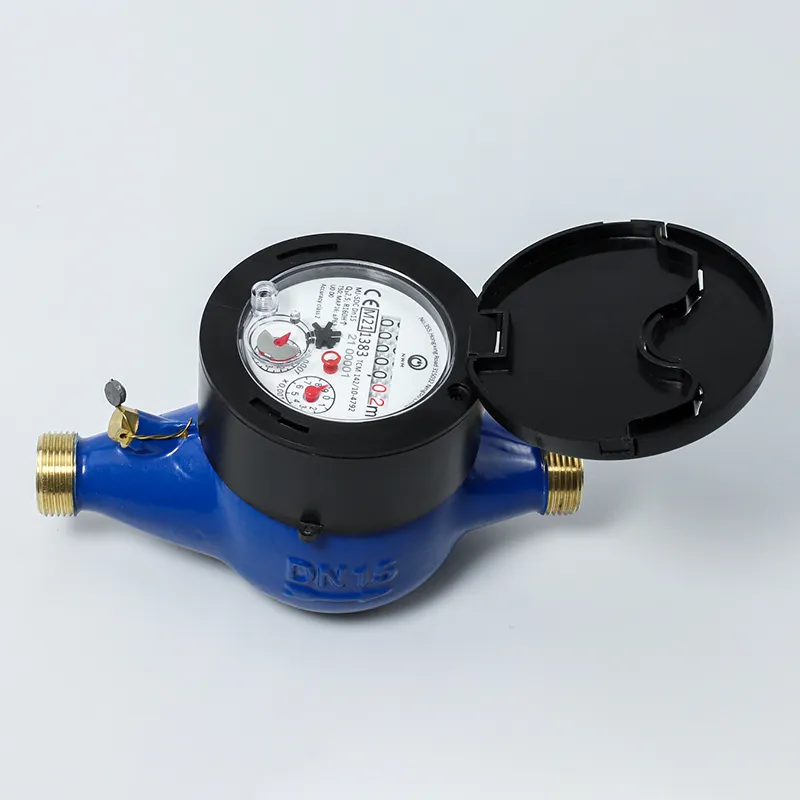

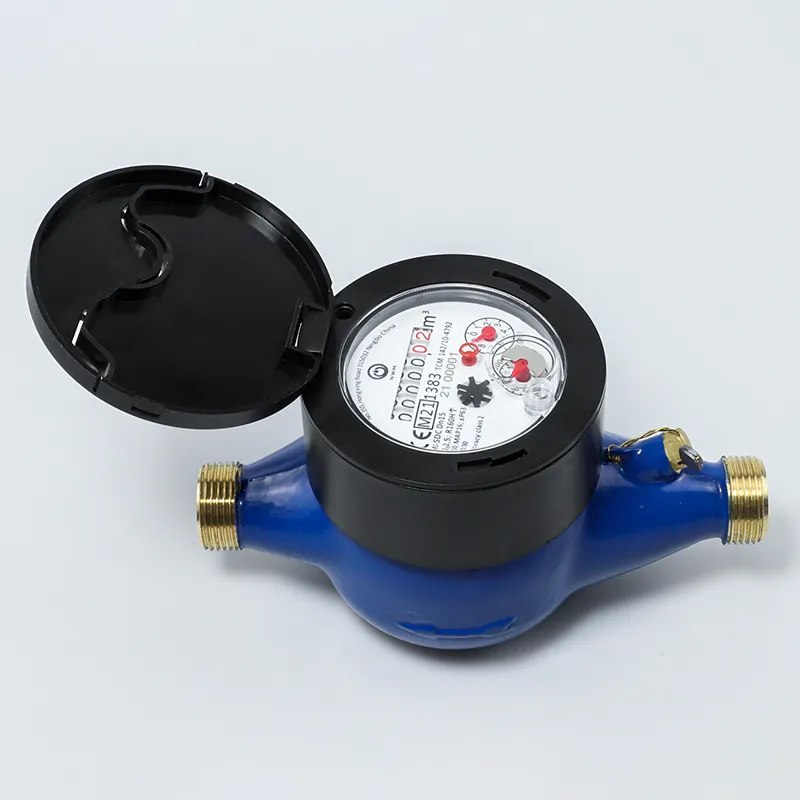

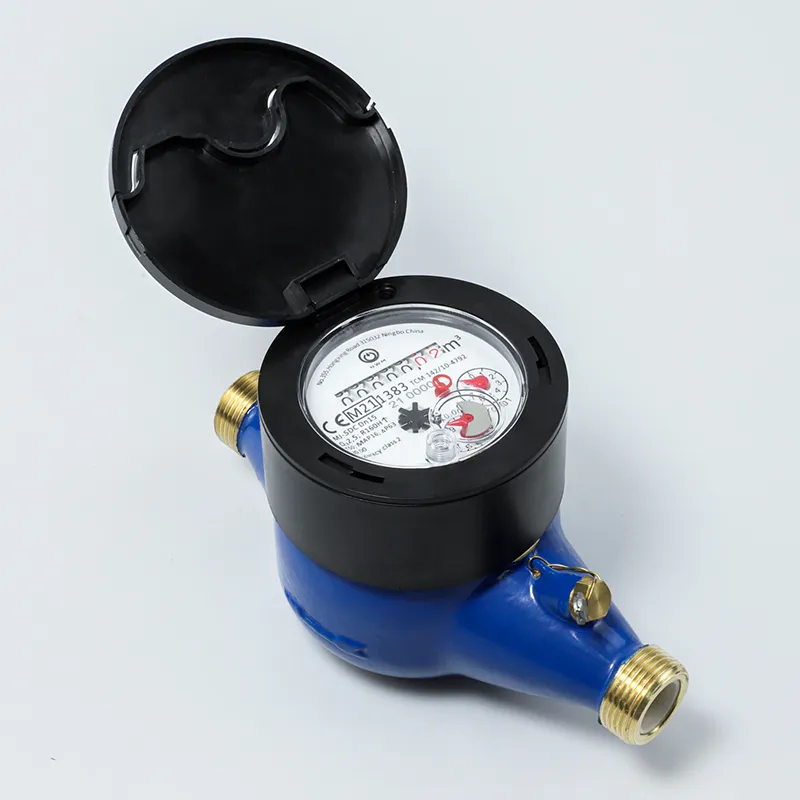

NWM MJ-SDC is a multiple impeller water meter with magnetic transmission, dry type register with sizes from Dn15 to Dn50 designed and manufactured by NWM and meets the requirements of ISO 4064:2014: Water meters intended for the metering of cold potable water.
● Corrosion Resistance:All the materials selected by resistance to corrosion;
● Magnetic Protection:The conception of the magnetic protection to against the external influences;
● The ROTARY Indicator Register:5 black Rollers, 3 red Rollers and 1 pointer for Dn15 to Dn32 and 6 black Rollers,2 red Rollers and 2 pointers for Dn40 and Dn50;
● Extra Inlet Filter:The filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
● Non Return Valve:to avoid the reserve flow Rate AS OPTION;
Remote transmission:Reserve remote transmission function to realize data transmission.
a.In the lower zone (Q1≤Q≤Q2): maximum permission error is ±5%;
b.In the upper zone (Q2≤Q≤Q4): maximum permission error is ±2%( T≤30℃),maximum permission error is ±3% (30℃
