Brand Name: NWM
Model: MJ-SDC(E)
Type: Multi-Jet
Body Material: Brass
Brand Name | NWM |
Model | MJ-SDC(E) |
Type | Multi-Jet |
Body Material | Brass |

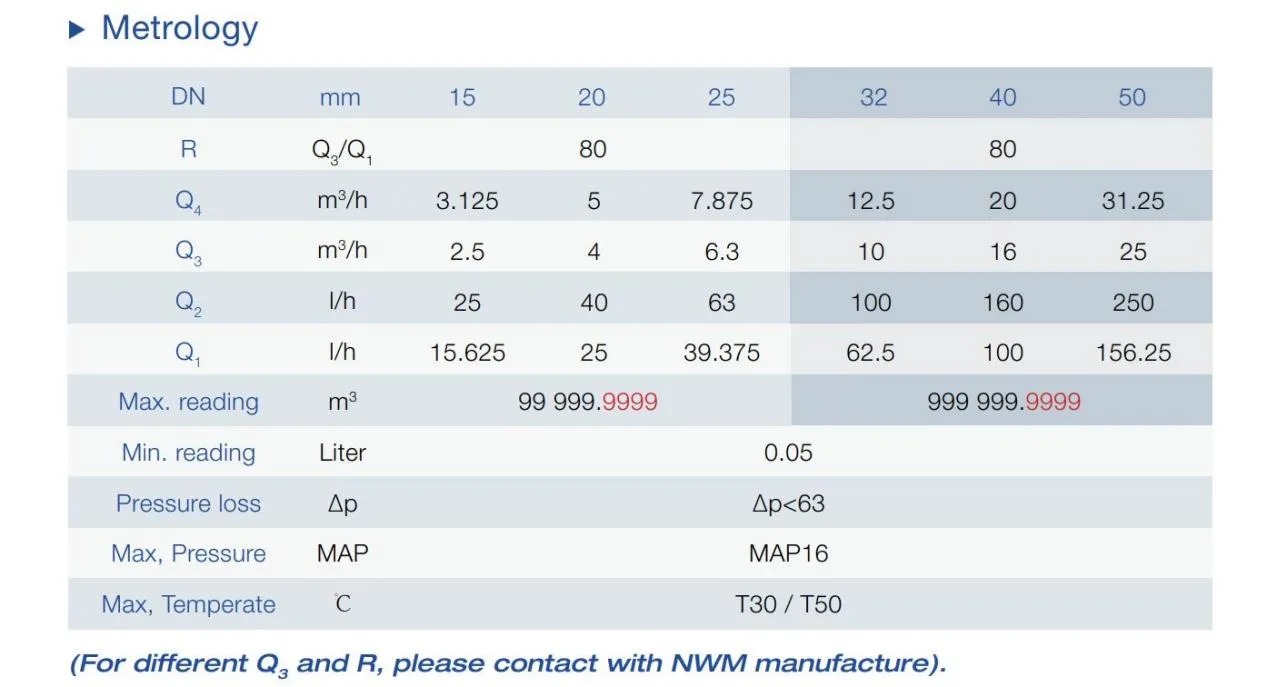

Ratio | Class B/R80 |

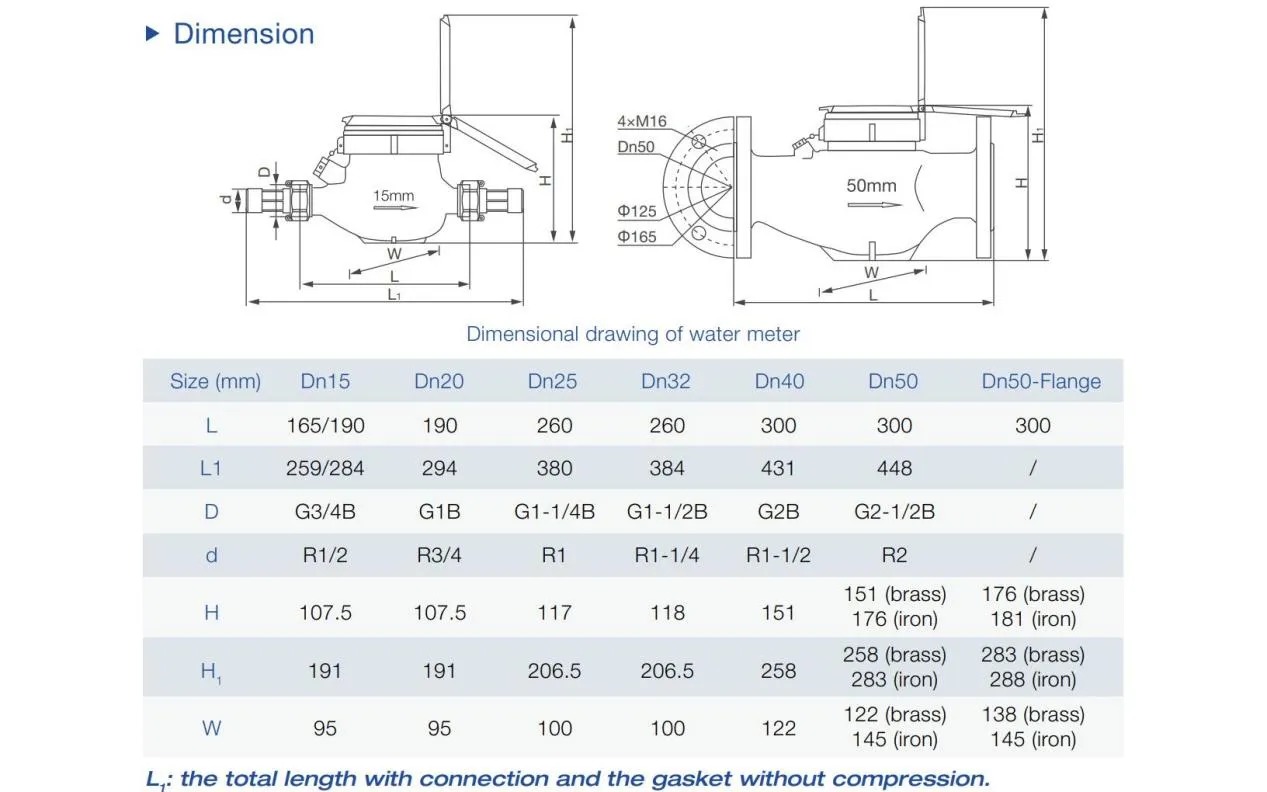

Size | Dn15/20/25/32/40/50 |
Customized Support | OEM, ODM |
Communication Port | Reed switch (pulse output) |
Installation Mode | Horizontal Installation |
Temperature Class | T30 (cold water)/T50 |
Pressure Rating | MAP16 |
Certificate | CE/MID 2014/32/EU |
Place of Origin | Ningbo, China |
Warranty | 2 years |

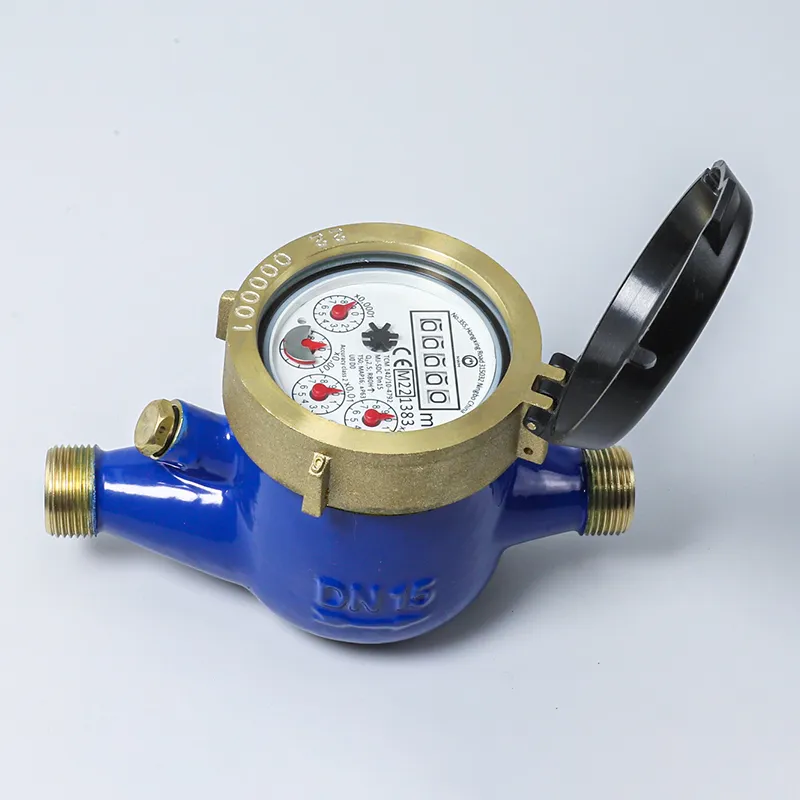

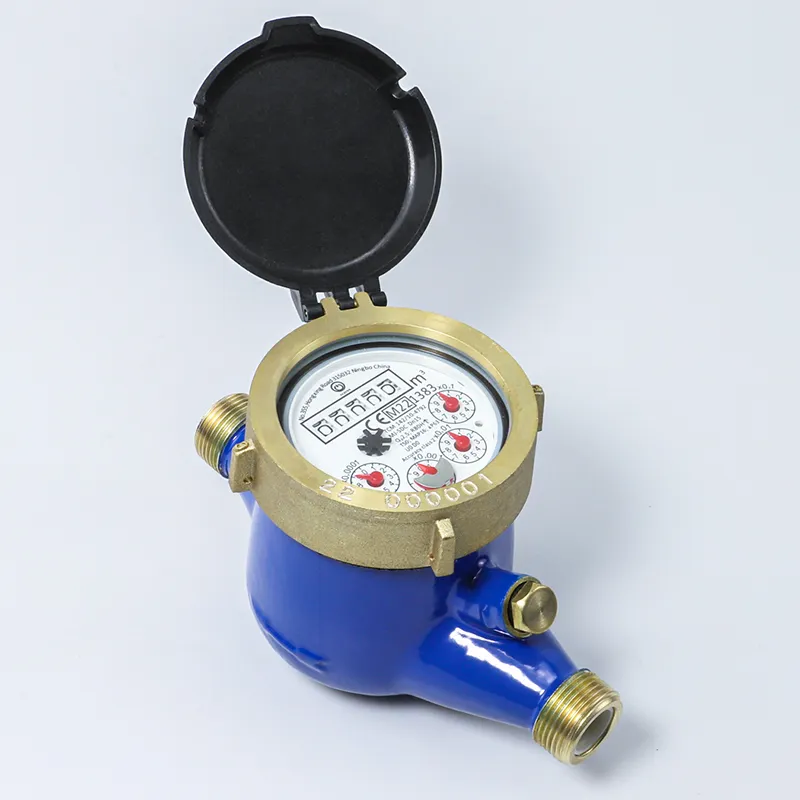

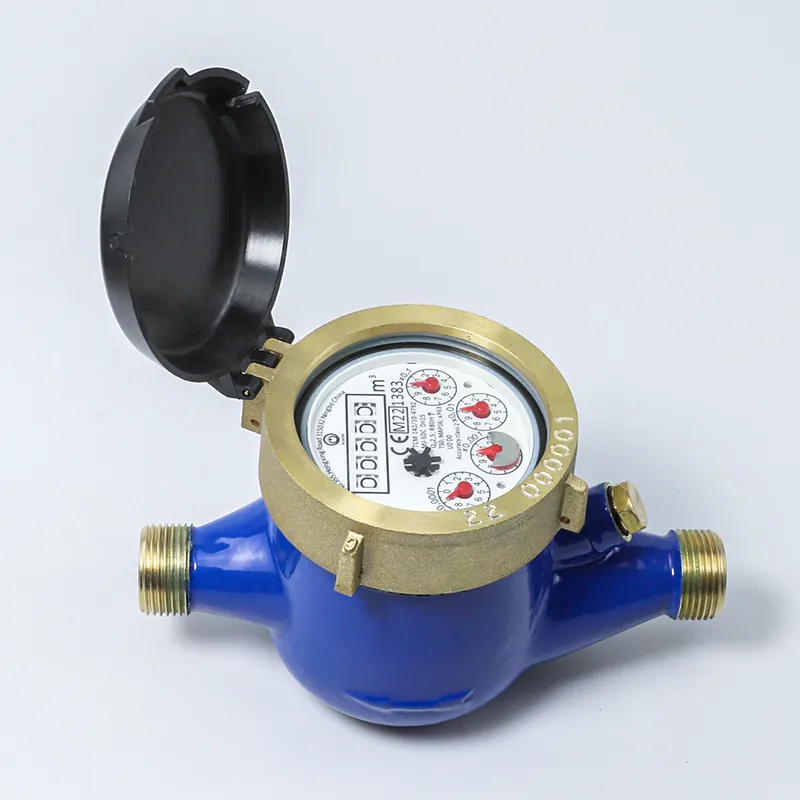

NWM MJ-SDC is an IMPELLER (turbine) multi-jet water meter with a dry type register for residential applications with sizes from Dn15 to Dn50 designed by NWM and meets the requirements of Standard ISO 4064.
● Corrosion Resistance: All the materials of the multi jet water meter selected by resistance to corrosion;
● Anti-interference: The conception of the Magnetic Protection to against the external influences;

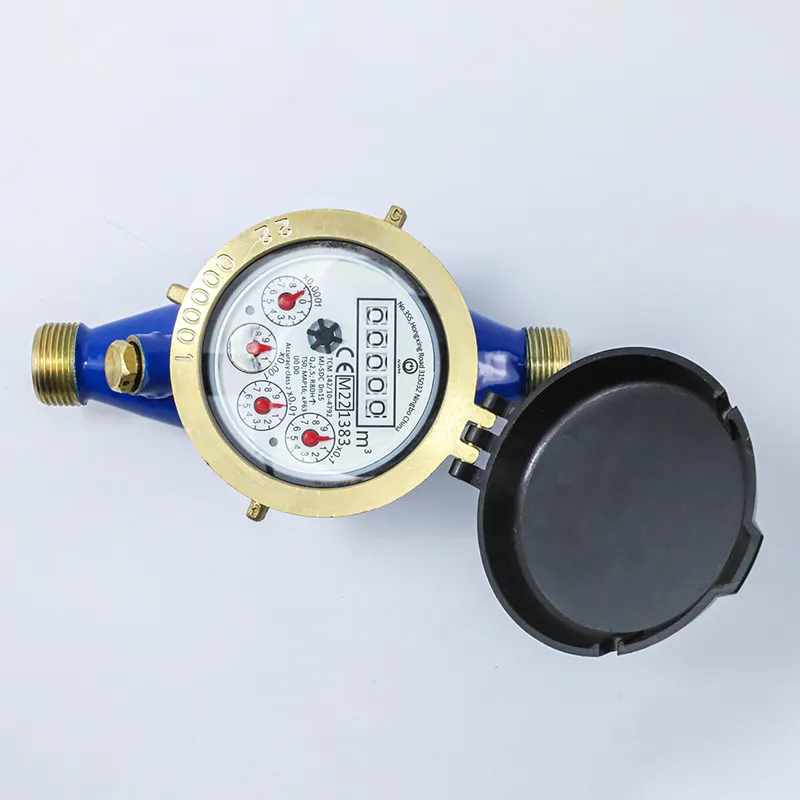

● Directly Reading: The indicator register is of 5 Rollers (Dn40/Dn50 with 6 Rollers) and 4 Pointers;
● Extra Inlet Filter: The inlet filter prevents water meter from any effect by grit and particulates;
● Non Return Valve to avoid the reserve flow Rate AS OPTION;
● A copper can super Dry register if multi jet magnetic water meter with IP68 protection AS OPTION.

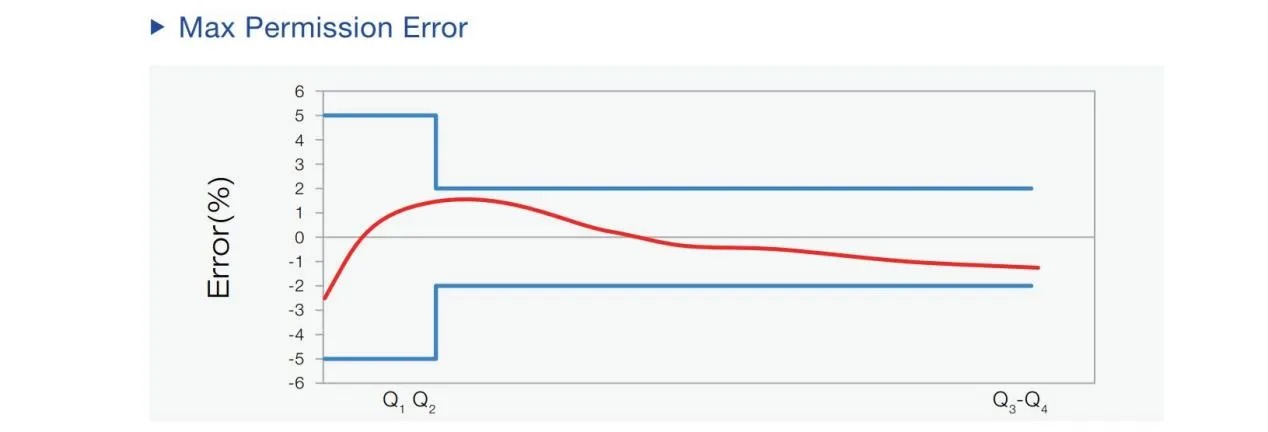

a.In the lower zone (Q1≤Q≤Q2): maximum permission error is ±5%;
b.In the upper zone (Q2≤Q≤Q4): maximum permission error is ±2%( T≤30℃), maximum permission error is ±3% (30℃
