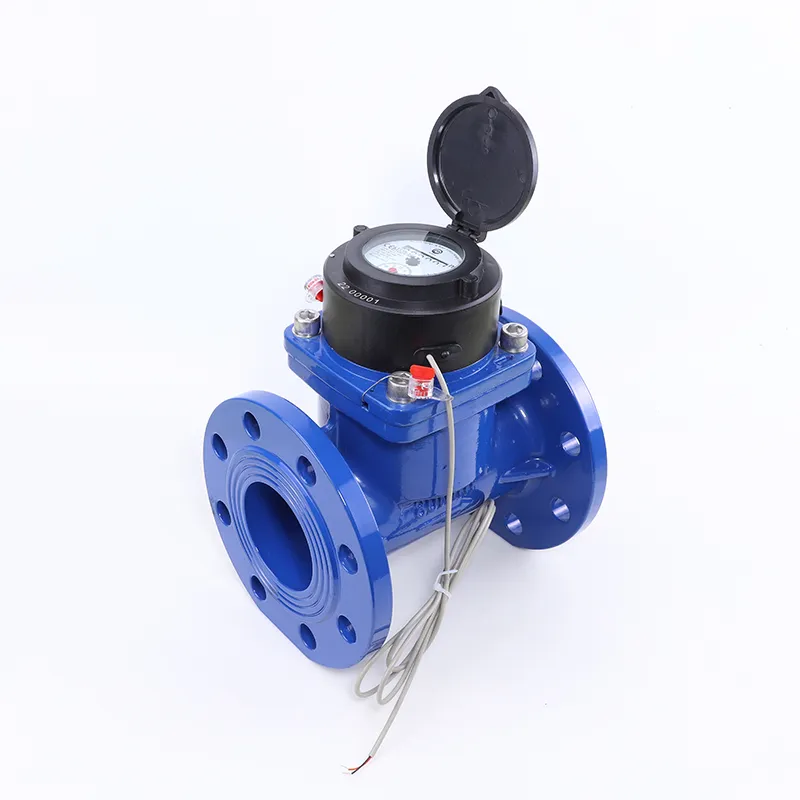

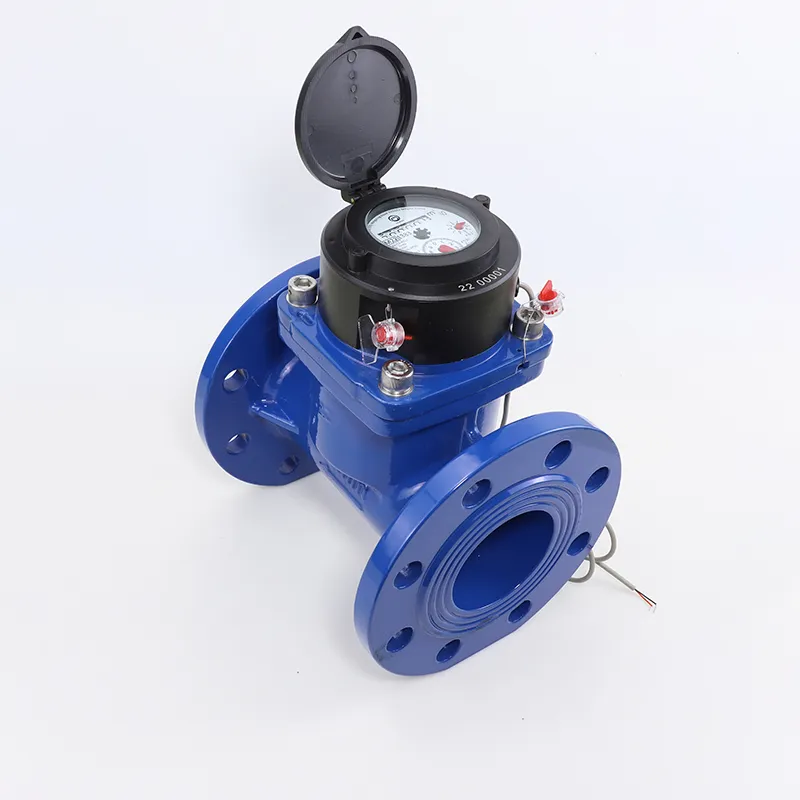

NWM WPI-SDC irrigation water flow meter is a TURBINE water meter with magnetic transmission, and super dry type register for irrigation and Agriculture applications with sizes from Dn50 to Dn300 designed by NWM and meets the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154.

● All the materials in contact with water, consciously selected by the known resistance to corrosion, iron body with inside and outside epoxy coating for protecting the corrosion;

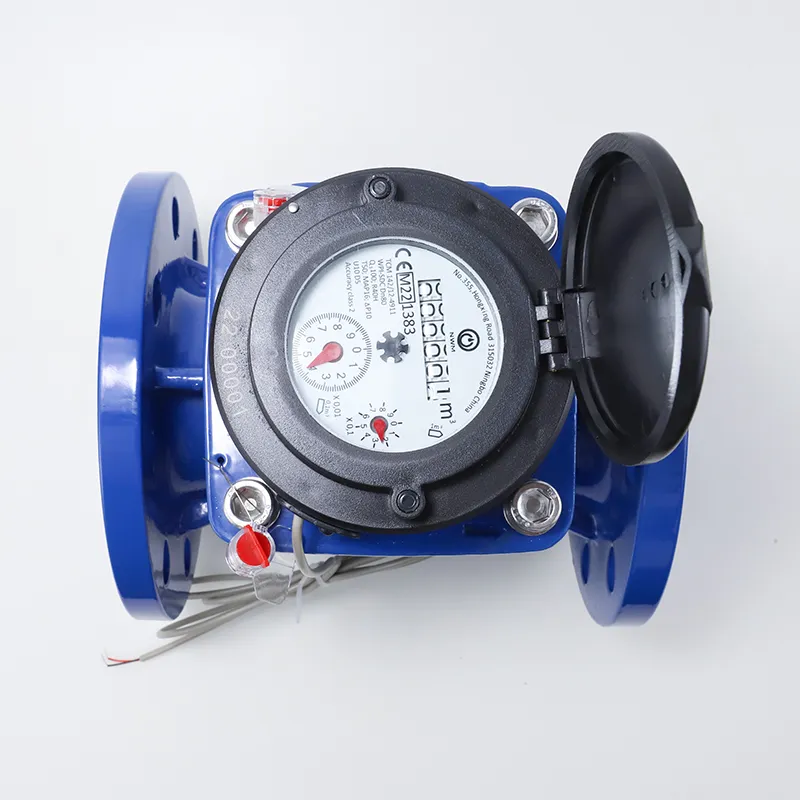

● The ROTATING indicator register for the most comfortable reading position;

● The irrigation water flow meter is with copper can super dry register with IP68 protection;

● The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body from the pipe;

● Paddle wheel design resists blockage and damage to meter from solids in water; Magnetic transmission, Low pressure loss;

● The water irrigation meter is suitable for irrigation, agriculture and waste water application.

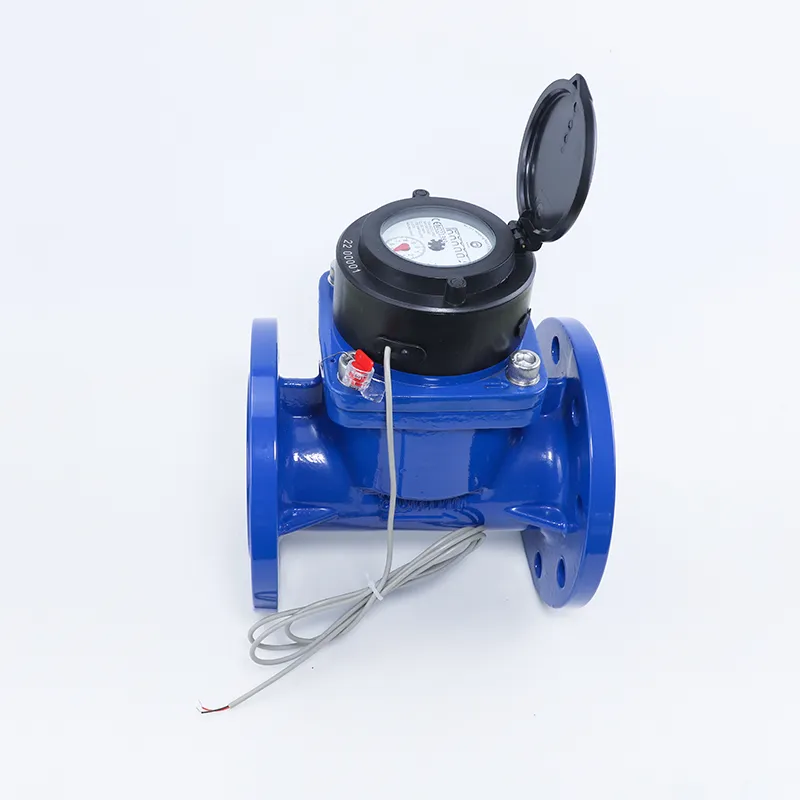

● Pulse output as OPTION for the water irrigation meter; DETIAL AS: The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1.5m cable with 2 cores in Red and Black.

● Electric Data: Vmax=24AC/DC; Imax=0,01A

Capacity of the Pulse Emitter:

Dial Plate Design:

Dimension:

The Flange Standard under lSO 7005-2:1998(E) PN16 as:

Main Technical Data:
