Brand Name: NWM
Model: WPC
Type: Woltman
Body Material: Brass & Ductile Iron
Brand Name | NWM |
Model | WPC |
Type | Woltman |
Body Material | Brass & Ductile Iron |
Ratio | R250 ~ 1200 |
Size | Dn50 / 65 / 80 / 100 / 125 / 150 |
Customized Support | OEM, ODM |
Communication Port | Pulse(Reed switch) |
Installation Mode | Horizontal Installation |
Temperature Class | T30/ T50 |
Pressure Rating | MAP16 |
Place of Origin | Ningbo, China |
Warranty | 2 years |

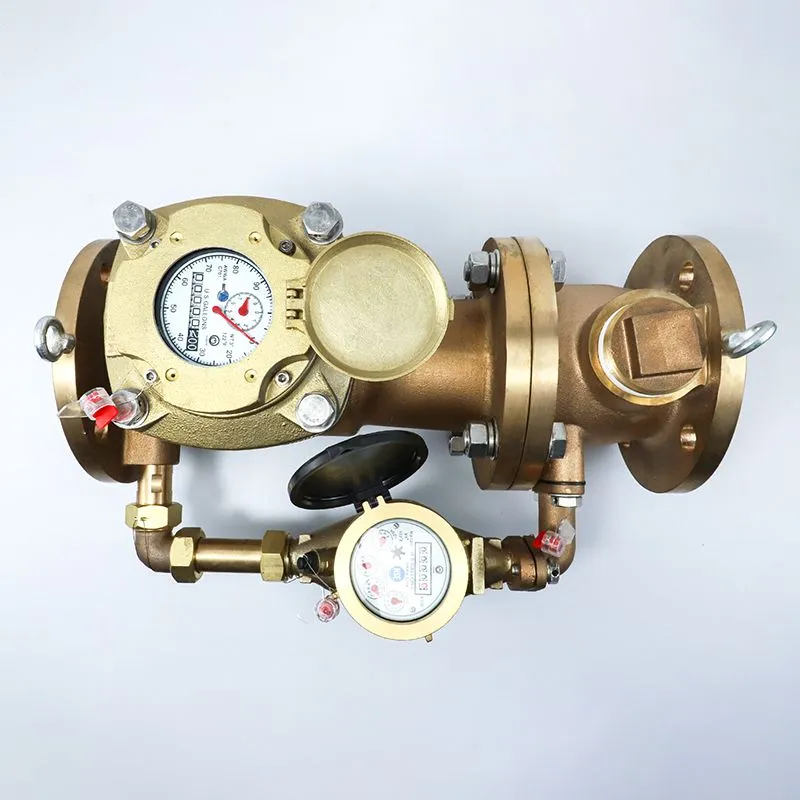

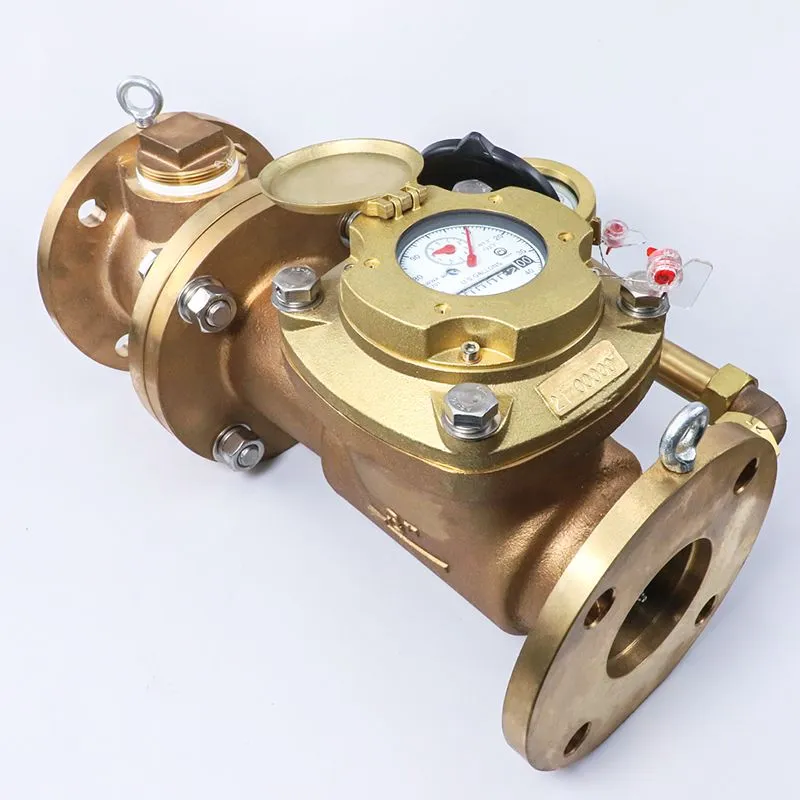

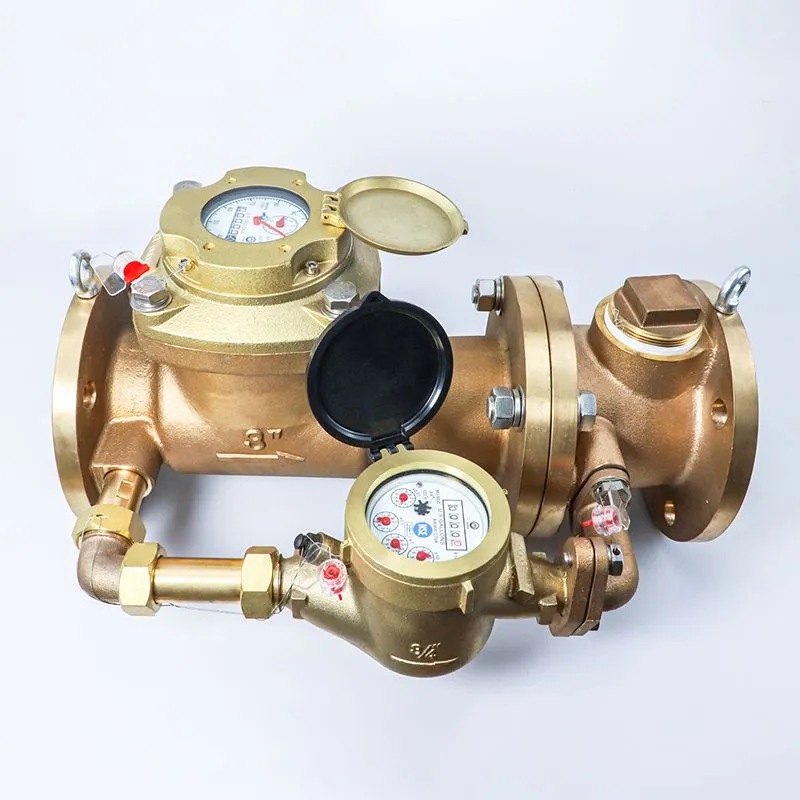

NWM WPC Compound (combination water meter) Water Meters utilize a turbine type meter on the main flow line and a proportionately sized meter on the low flow bypass line. A change over valve controls the flow of water through the appropriate measuring device. Before the valve opens, all water flows through the low flow meter. As pressure rises the valve opens, allowing water to flow through both meters. Movement of the measuring elements of the compound water meter definition is transmitted to drive magnets, which transmit the motion to driven magnets located within hermetically sealed registers. The magnets are connected to gear trains, which translate the rotations into volume totalizators displayed on the register dial faces.
● All the materials in contact with water, consciously selected by the known resistance to corrosion;
● Iron body with inside and outside epoxy coating for protecting the corrosion;
● The Rotating indicator register of the main meter for the most comfortable reading position;
● The copper can super dry register of the main compound type water meter is with IP68 protection;
● The interchangeable, removable measuring mechanism of the main meter can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe; Lower Pressure loss;
● No effected by external magnetic fields;
● Pulse output AS OPTION.
The Flange Standard under lSO 7005-2:1998(E) PN16 as:
a.From Qmin inclusive up to but excluding Qt is ± 5%;
b.From Qt inclusive up to and including Qmax is ± 2%;
