Brand Name: NWM
Model: MJP-SDC-(NSF)
Type: Multi-Jet
Body Material: Brass/lead-free brass
Brand Name | NWM |
Model | MJP-SDC-(NSF) |
Type | Multi-Jet |
Body Material | Brass/lead-free brass |
Ratio | AWWA C708 |
Size | 5/8*1/2"~2" |
Customized Support | OEM, ODM |
Communication Port | Reed switch (pulse output) |
Installation Mode | Horizontal Installation |
Temperature Class | Deg.F122 |
Pressure Rating | 150PSI |
Certificate | WRAS & NSF61 |
Place of Origin | Ningbo, China |
Warranty | 2 years |

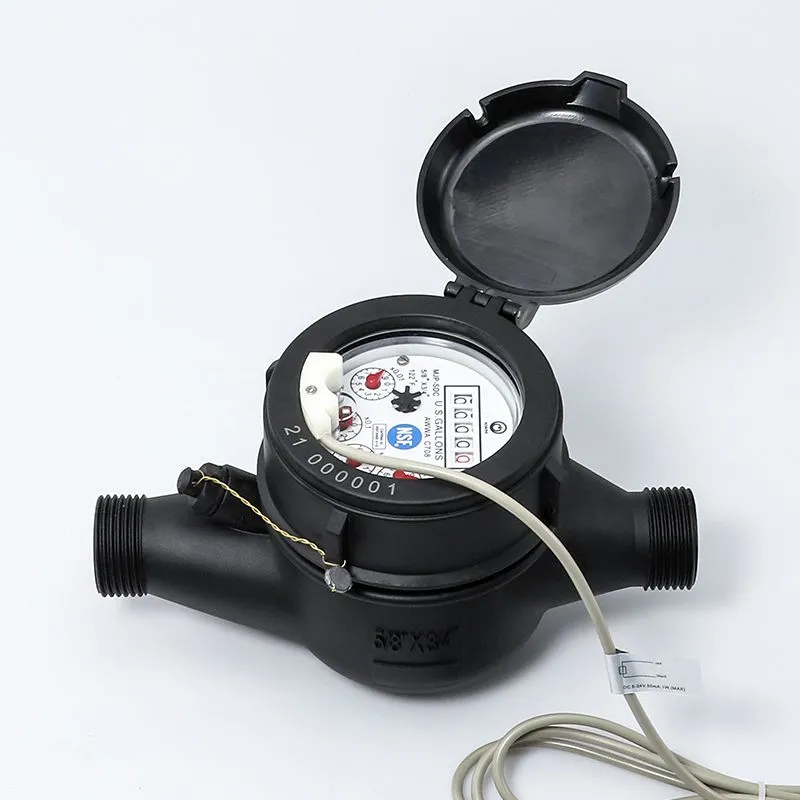

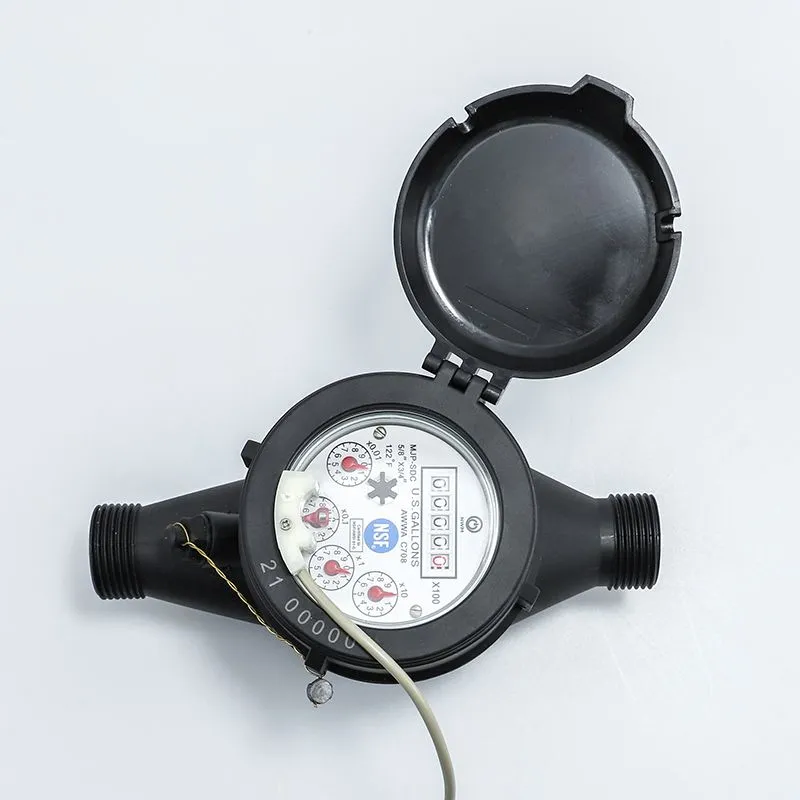

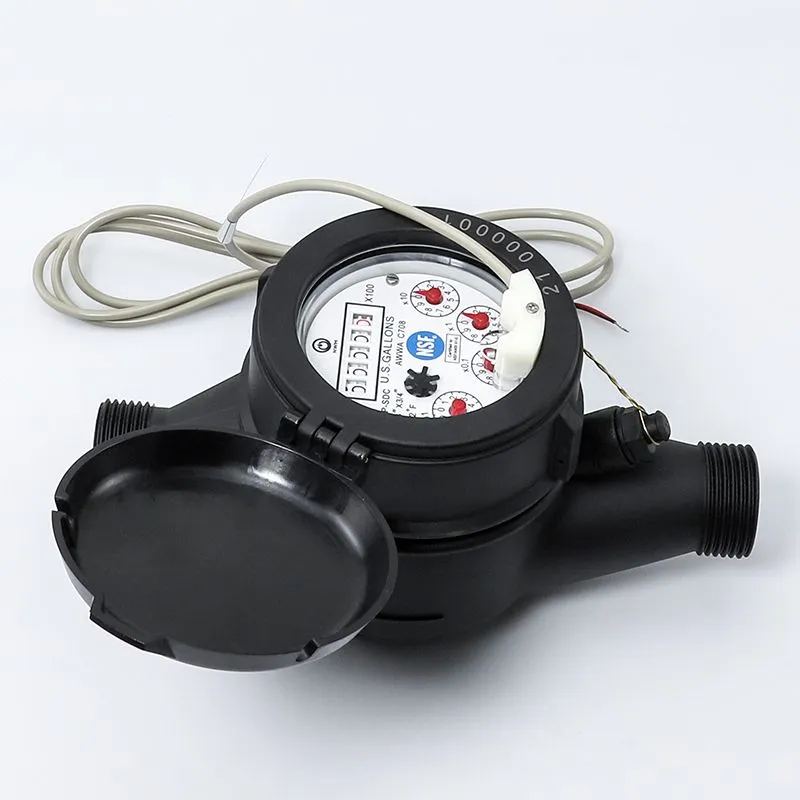

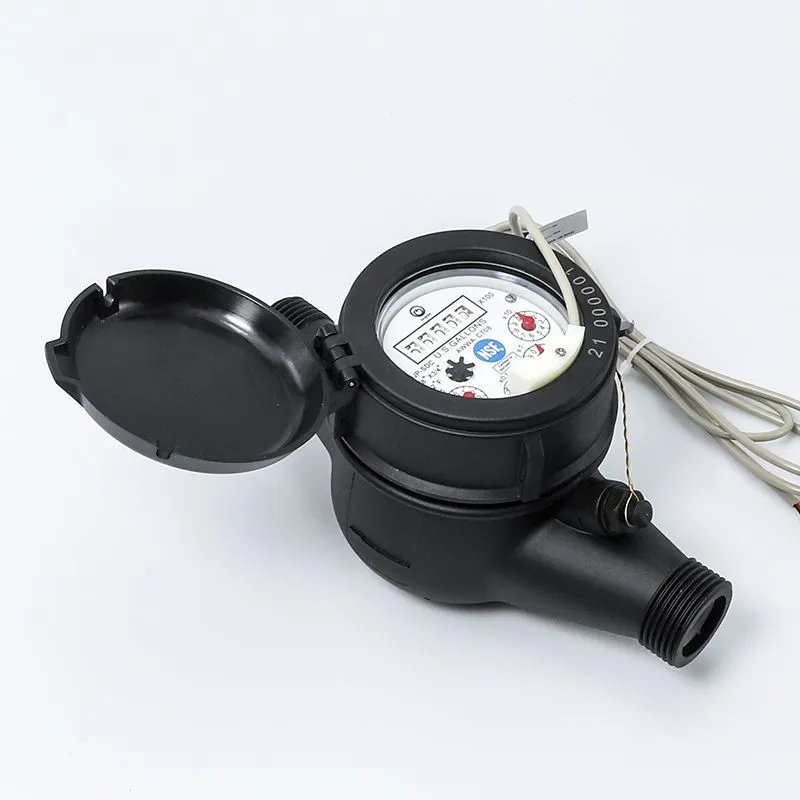

NWM MJP-SDC is an IMPELLER (turbine) water meter with dry type register for residential applications with sizes from 5/8" to 1-1/2" designed by NWM and meets AWWA C708 standard with NSF-61-G certification.
● All the Materials in contact with american water meter reading, consciously selected by the known resistance to corrosion;
● Magnetic Protection:The conception of the magnetic protection to against the external influences;
● The impeller is the only moving parts in contact with water permitting the most reliable;
● The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
● The conception of the Magnetic Protection to against the external influences;
● Non Return Valve to avoid the reserve flow Rate AS OPTION.
